Peakflowa 2021 4c

Scale Prevention System

  • Scale inhibitor
  • Chemical-free and environment-friendly
  • Increases flow rates
  • For up to 10 gpm
  • Residential and commercial

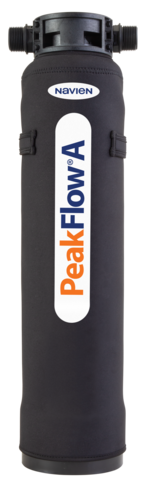

Navien PeakFlow® A scale prevention system
PeakFlow® A certifications
  • Scale inhibitor
  • Chemical-free and environment-friendly
  • Increases flow rates
  • For up to 10 gpm
  • Residential and commercial
Find Sales Rep

Navien PeakFlow®A... the complete package

Peakflow-a-inlet-outlet-black

Easy to install with 1" inlet/outlet connections and clips

Peakflow-a-sleve

High strength fiberglass tank with durable poly outer protective sleeve

Peakflow-a-bracket

Heavy-duty mounting bracket

Peakflow-a-shadow
Peakflow-a-media

Easy to replace PeakFlow media – lasts up to 3 years

Peakflow-a-upflow-design-black

Up-flow system design with easy access to distribution tube and upper and lower baskets

Peakflow-a-up-down-basket-black

Upper basket design prevents media migration, rotates off and on for easy cleaning

Gbspy-logo

Named a 2022 Sustainable Product of the Year by Green Builder Media.

PeakFlow® series video

This highly recommended environmentally friendly system treats hard water issues to address the water quality going into your Navien units, other water-related products and your water supply lines. A “must buy” in areas of hard water. Scale build-up from hard water is the biggest single reason for unit failures.

PeakFlow A prevents scale by converting dissolved hardness minerals into powerless particles that will not attach themselves onto any of the components in the system. PeakFlow A, when sized correctly for the installation, will help to ensure the longevity of your system, and help eliminate hard water quality problems.

Maximum pressure
90 psi/6.2 bar
Maximum temperature
100°F/38°C
Minimum temperature
40°F/5°C
Inlet/outlet connections
1" FNPT
Service flow rate
up to 10 gpm (23 lpm)
Continuous flow rate
Up to 6 gpm (15 lpm)
Capacity
Media does not have a grain removal capacity. However, other contaminants present in the water will gradually degrade the effectiveness of this cartridge (see Operation and Maintenance below).
Unit weight
15 lbs/6.8 kg
Unit size (W x H)
5-1/2" x 22-1/2"
Media replacement period
5 years
PH
6.5 to 8.5
Hardness (maximum)
75 grains (1282 ppm CaCO3)
Water Pressure
15 psi to 90 psi (1.03 bar to 6.2 bar)​
Temperature
40°F to 100°F (5°C to 38°C)
Chlorine
<2 ppm
Iron (maximum)
0.3 mg/l
Manganese (maximum)
0.03 mg/l
Oil & H2S
Must be removed before PeakFlow™A
Polyphosphate
Must be removed before PeakFlow™A
Silica (maximum)
20 ppm* - PeakFlow media does not reduce silica scaling. While silica tends to have a less significant effect on scale formation than other minerals, it can act as a binder that makes water spots and scale residue outside the plumbing system difficult to remove.
Peakflow a 1 Peakflow a 2
Dimensions
  A B C D E
  in. mm in. mm in. mm in. mm in. mm
PeakFlow A 22.5 572 5.5 140 4 102 3.5 90 12 300
