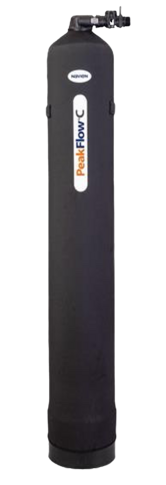

Navien PeakFlow®C... the complete package
Floor-standing design with high strength fiberglass tank & a flexible, zippered, neoprene cover
Easy inlet/outlet connection for fast installation and maintenance.
Valve can be simply disassembled for cleaning.
PeakFlow C media with gravel to improve water flow and even water distribution through the media - last up to 5 years
Built-in bypass valve
Bypass position
In-Service position
High-performance distributor tube with upper and lower baskets
PeakFlow® series video
This highly recommended environmentally friendly system treats hard water issues to address the water quality going into your Navien units, other water-related products and your water supply lines. A “must buy” in areas of hard water. Scale build-up from hard water is the biggest single reason for reduced performance.
PeakFlow C prevents scale by converting dissolved hardness minerals into powerless particles that will not attach themselves onto any of the components in the system. PeakFlow C, when sized correctly for the installation, will help to ensure the longevity of your system, and help eliminate hard water quality problems
- Maximum pressure
- 90 psi/6.2 bar
- Maximum temperature
- 100°F/38°C
- Minimum temperature
- 40°F/5°C
- Inlet/outlet connections
- 1" MPT
- Service flow rate
- Up to 20 gpm (76 L/m)
- Continuous flow rate
- Up to 16 gpm (60 L/m)
- Capacity
- Media does not have a grain removal capacity. However, other contaminants present in the water will gradually degrade the effectiveness of this media (see Operation and Maintenance).
- Unit size (W x H)
- 10" x 54"
- Media replacement period
- 5 years
- PH
- 6.5 to 8.5
- Hardness (maximum)
- 75 grains (1282 ppm CaCO3)
- Water Pressure
- 15 psi to 90 psi (1.03 bar to 6.2 bar)
- Temperature
- 40°F to 100°F (5°C to 38°C)
- Chlorine
- <2 ppm
- Iron (maximum)
- 0.3 mg/l
- Manganese (maximum)
- 0.05 mg/l
- Oil & H2S
- Must be removed before PeakFlow™C
- Polyphosphate
- Must be removed before PeakFlow™C
- Silica (maximum)
- 20 ppm* - PeakFlow media does not reduce silica scaling. While silica tends to have a less significant effect on scale formation than other minerals, it can act as a binder that makes
Dimensions | ||||||||||
A | B | C | D | |||||||
in. | mm | in. | mm | in. | mm | in. | mm | |||
PeakFlow C | 54 | 1372 | 10 | 254 | 12 | 305 | 2 | 51 |
