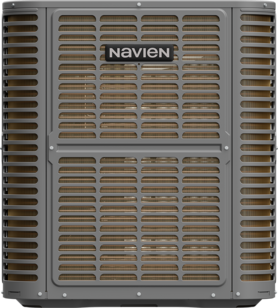

NAZ-17V60 premium features and benefits
Deep Drawn Venturi
for quiet efficient air movement.
Swept Wing Fan Blades
provide quiet operation.
Large Suction Accumulator.
Gold Coat Outdoor Coil
helps shed water and facilitate quick and efficient defrost.
NAZ-17V60 QuickFacts
29.1" W x 32.9" H x 29.1" D (74.0cm W x 83.5cm H x 74.0cm D)
Product approvals
- AHRI Certified
- Yes
- cETLus
- No
| Item | NAZ-17V60 | |
|---|---|---|
| Unit | Dimensions | 29.1" W x 32.9" H x 29.1" D (74.0cm W x 83.5cm H x 74.0cm D) |
| Packing | 29.9" W x 37.3" H x 29.9" D (75.9cm W x 94.6cm H x 75.9cm D) | |
| Net weight | 190 lbs (86.2 kg) | |
| Gross weight | 218 lbs (98.9 kg) | |
| Thermostat Type | Conventional 1- or 2-stage | |
| Electrical data | Volts Phase Hz | 230 – 1 – 60 |
| Minimum circuit ampacity (A) | 30 | |
| Max. overcurrent protection (A) | 40 | |
| Volts (V) min - max | 187 - 253 | |
| Compressor | Compressor Type | Rotary |
| Hz | 18 - 100 | |
| Rated current (RLA) | 22.0 | |
| LRA | 58.1 | |
| Fan motor | Power supply | DC |
| RLA (A) | 1.2 | |
| Maximum speed (rpm) | 1100 | |
| FLA (A) | 2.0 | |
| Coil | Number of rows | 2 |
| Tube outside diameter | 9/32 | |
| Tube pitch x row pitch | 0.53 inch x 0.83 inch (13.5 mm x 21.1 mm) | |
| Refrigerant system | Refrigerant | R454B |
| Liquid Connection Size | 3/8 (9.5) | |
| Vapor Connection Size | 7/8 | |
| Refrigerant Charge | 155.2 oz (4,399.8 g) | |
| Expansion Valve | EEV | |
| Operating temperature | Cooling mode | 5~124 °F (-15~51.1 °C) |
| Heating mode | -4~75 °F (-20~23.9 °C) | |
| SEER2 | Up to 19.5* | |
| HSPF2 | Up to 9.3* | |
| Certifications | AHRI | |
*With select AHRI matched indoor equipment.
Navien reserves the right to change specifications at any time without prior notice.
| NAZ17-Coverage Table for Labor and Parts Only | |||
| Residential2 | Commercial | ||
| Parts1 | Registered3 | 10 Years | 1 Year |
| Non-Registered4 | 5 Years | ||
| Labor | 90 Days | ||
Definitions:
Parts1 – refers to all internal functional components of the unit, except for the Combustion Heat Exchanger
Residential2 – Refers to a Single-Family, residential application.
Registered3 – Refers to coverages for units registered within 60 days of the Commencement date.
Non-Registered4 – Refers to coverages for units registered 61 days or more after the Commencement Date
| Match Setup | Capacity | Efficiency | |||||
| Capacity | OUD | IDU | Cooling | Heating | EER2 | SEER2 | HSPF2 |
| 2 ton | NAZ-17V36 | NASS24B2T2A1 | 22,600 | 23,600 | 12.0 | 17.0 | 8.75 |
| 3 ton | NAZ-17V36 | NASS36C2T2A1 | 32,200 | 32,600 | 11.1 | 16.6 | 8.6 |
| 4 ton | NAZ-17V60 | NASS48D2T2A1 | 44,000 | 44,000 | 11.1 | 17.3 | 8.6 |
| 5 ton | NAZ-17V60 | NASS59D2T2A1 | 54,000 | 56,000 | 9.85 | 16.3 | 8.5 |
| 2 ton | NAZ-17V36 | NASV24B2T2A1 | 23,400 | 25,000 | 12.4 | 18 | 8.75 |
| 3 ton | NAZ-17V36 | NASV36C2T2A1 | 34,400 | 36,000 | 11.7 | 19.5 | 8.75 |
| 4 ton | NAZ-17V60 | NASV48D2T2A1 | 46,500 | 45,000 | 11.4 | 18.0 | 9.3 |
| 5 ton | NAZ-17V60 | NASV59D2T2A1 | 56,000 | 56,000 | 10.45 | 18.5 | 9.1 |
| Capacity | Mode | Sound Power Level (dBA) | Full Octave Sound Power Level (dBA) | |||||||||
| Lw (AHRI 270 125~8000Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | 8000 | |||||
| 3 Ton | Low | 61 | 48 | 50.9 | 50.7 | 44.1 | 35.8 | 38.1 | 35.6 | |||
| High | 81 | 64 | 70.3 | 70.4 | 67.7 | 62.1 | 58.7 | 52.5 | ||||
| 5 Ton | Low | 61 | 48.5 | 50.9 | 51.9 | 45.7 | 38.4 | 39.1 | 35.9 | |||
| High | 82 | 68.6 | 67.4 | 71 | 66.2 | 61.9 | 56.3 | 49.6 | ||||
Compare NAZ models
NAZ Videos
NAZ-17V60 FAQs
Do Navien NAZ heat pumps require special dedicated thermostats?
No, if you have a conventional thermostat that you like, chances are you can keep it as the NAZ heat pump works with conventional one or two-stage heat pumps.
What climate is best for a heat pump?
Heat pumps have evolved significantly to the point you can find them in all the different environments found in North America. The NAZ Heat Pump provides comfort conditioning with outdoor temperatures from -4 deg °F to 124 deg °F,
Do heat pumps use a lot of electricity?
Heat pumps are highly energy-efficient and use 2-3 times less electricity than traditional electric heating because they transfer heat instead of generating it.
How does the cost of running a heat pump compare to a furnace?
There is no one answer that covers all installs. To truly evaluate you have to look at the cost of energy, gas and electric, in your market along with the efficiency of the equipment being compared. Many times a heat pump can be more efficient in moderate climates and a high-efficiency residential gas furnace can be more efficient in colder climates.
What’s the life expectancy of a heat pump?
With proper maintenance, heat pumps typically lass 10–15 years, though climate and usage can impact service life.
