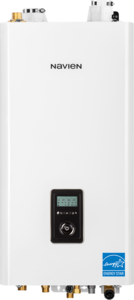

New NFC-H Series

Condensing Fire Tube Combi-boilers

Nfc-h-leftside-angled

New NFC-H highest heating and DHW performance ever built into one compact combi-boiler


Navien innovation, durability and proved fire tube technology has done it again. The new NFC-H has more heating and DHW capacities for today’s larger progressive homes. Navien continues to reinvent smarter ways to bring high efficiency home comfort to your customers. Also Navien continues to make installation and set-up easier for contractors.

Navien takes high efficiency fire tube combi technology
to new heights

  • Highest DHW maximum BTU’s in residential combi-boilers...
    up to 210,000 per hour *
  • Highest DHW flow rate @ 70°F rise...
    up to 5.4 GPM
  • Highest residential combi DHW TDR... 15:1 for all models
  • Highest residential combi heating
    TDR... up to 15:1
  • Highest full lineup 2" PVC venting lengths... up to 65 feet
  • Highest number of built-in zone controls for valves or pumps... up to three
  • Highest number of cascade capable
    units with NPE tankless water heaters... up to 15
  • High altitude certification... up to 10,100 feet (NG or LP)
  • Lowest minimum fire BTU/H (13,300) for whole house** residential combi-boilers.

 *Based on NFC-250/200H.
**Whole house refers to combi-boilers that offer at least 150,000 BTU/H for DHW.


Ncb-h-house-blue
Nfc-h-btus-199900-210

COMPARE these advantages and see why NFC-H combis are the right fit for small and large homes



  • Nfc-h-feature-dualinputs

    Dual inputs of 210,000 BTU/H for DHW and up to 199,900 BTU/H for heating

    Satisfies all the space heating and domestic hot water requirements of most typical large homes.

  • Nfc-h-feature-size-comp

    Space saving and light
    weight design

    Navien’s sleek wall-hung combi-boilers occupy 80% less space than traditional floor standing boilers and tank water heaters.

  • Nfc-h-feature-dual-venturi

    Dual Venturi and field gas convertibility

    Dual Venturi system creates better combustion control and turndown ratio. Field gas convertibility is easy with orifice conversion kits for NG high altitude (5,400–10,100 ft.) and LP (up to 10,100 ft.) included with NFC-H Series combi-boilers

  • Nfc-h-feature-dhw-mod-easy-access

    Easy access to DHW module
    and valves

    All components of DHW module including water feed valve, flow adjustment valve, mixing valve and 3-way valve are right behind circuit board for easy serviceability.

  • Nfc-feature-closet-lvg-room

    Low noise levels

    Installations in or near media rooms, recreation rooms or any living areas of the house are possible with the quiet running NFC-H combi-boilers.

  • 10-1-ratio-nfb-2

    TDR 15:1 for heating and for DHW

    The sophisticated gas flow control system provides a high turndown ratio, reducing energy waste and excessive boiler cycling and enhances temperature control for DHW.

Patented stainless steel fire tube heat exchanger


Navien’s advanced patented stainless steel heat exchanger design is ASME‑Certified,
“H” Stamped, and reduces high stress point weld failures common on other combi-boilers.
This compact, in‑house designed and manufactured heat exchanger uses the latest automated laser welding technology to deliver superior product quality.

Nfc-h-heatexchanger-callouts

Patented stainless steel fire tube heat exchanger

Navien’s advanced patented stainless steel heat exchanger design is ASME‑Certified, “H” Stamped, and reduces high stress point weld failures common on other boilers. This compact, in‑house designed and manufactured heat exchanger uses the latest automated laser welding technology to deliver superior product quality.

Nfc-h-heatexchanger-w-letters
Nfc-h-heatexchanger-callouts-abc
Nfc-h-heatexchanger-callouts-defg

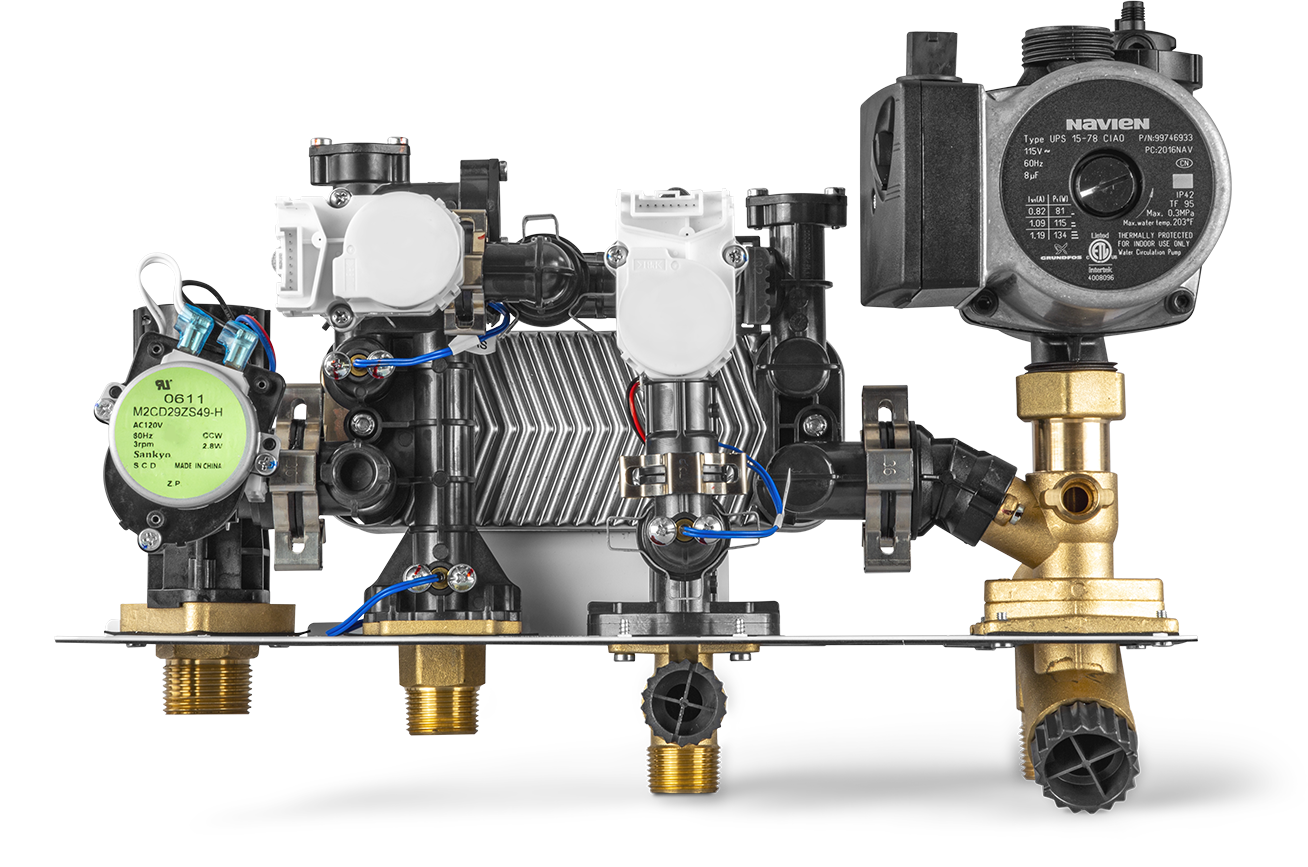

Built-in DHW module now with
advanced performance

Navien’s new innovative domestic hot water heat exchanger now generates even more hot water, giving customers the ability to run up to 3 showers and a dishwasher, all at the same time with 5.4 gallons per minute at a 67°F temperature rise.

Nfc-h-dhw-module-callouts
H-series-heat-plate

Built-in DHW module now with advanced performance

Navien’s new innovative domestic hot water heat exchanger now generates even more hot water, giving customers the ability to run up to 3 showers and a dishwasher, all at the same time with 5.4 gallons per minute at a 67°F temperature rise.

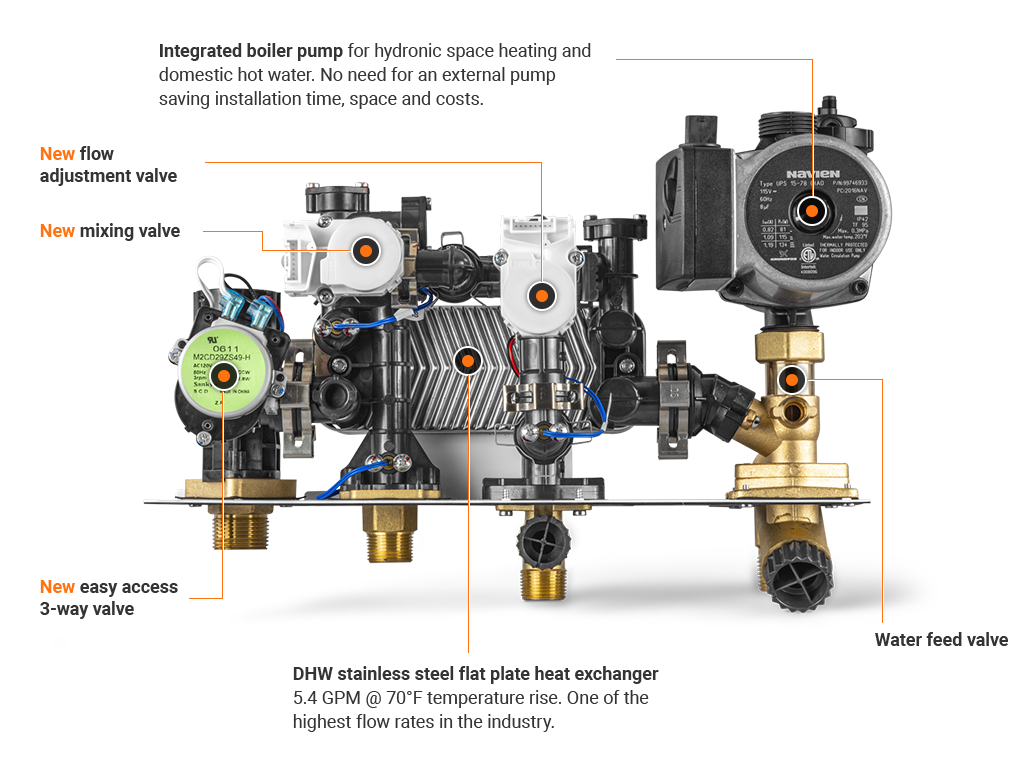

Nfc-dhw-module

Integrated boiler pump for space heating and DHW. No need for an external boiler pump saving installation time, space and costs.

DHW SS flat plate heat exchanger 5.4 GPM @ 67°F temperature rise. One of the highest flow rates in the industry.

• New mixing valve.

• New easy access 3-way valve.

• New flow adjustment valve.

• Water feed valve.

Advanced user interface control with setup wizard

Navien’s new backlit control panel is simple and intuitive to use with its plain text display and an innovative click wheel that improves usability for all information input

Nfc-bottom
Navien-nfc-circuitboard

Built-in hardware to connect up to
3 zone pumps or 3 zone valves

With Navien’s new PCB design you now have the ability to connect 3 zone pumps.

The NFC-H can be cascaded with up to 15 Navien NPE tankless water heaters

Nfc-3npe-cascade

Common vent up to 8 units

One NFC-H combi-boiler can be common vented with up to 7 NPE tankless water heaters. The NFC/NPE systems are approved for single pipe (exhaust) and dual pipe (fresh air intake and exhaust) installations.

NFC-H Models

NFC-250/175H
Max HTG Input: 175,000 BTU/h
Max DHW Input: 210,000 BTU/h
Indoor wall-hung
Residential/Commercial
NFC-250/175H
View model
NFC-250/175H
NFC-250/200H
Max HTG Input: 199,900 BTU/h
Max DHW Input: 210,000 BTU/h
Indoor wall-hung
Residential/Commercial
NFC-250/200H
View model
NFC-250/200H
Navilink-logo-new

Optional Wi-Fi remote control system



NaviLink makes it easy to communicate with your Navien systems anywhere internet service is accessible. The NaviLink module attaches easily to any new or existing* Navien tankless water heater, combi‐boiler and boiler.


* Existing installations may require the purchase of a new main PCB and front control panel.

Click here to learn more about NaviLink
Navi-link-app-icon

Available for Download
on IOS or Android

Navilink-beach-nfc-h-series
