NAA17V36 premium features and benefits

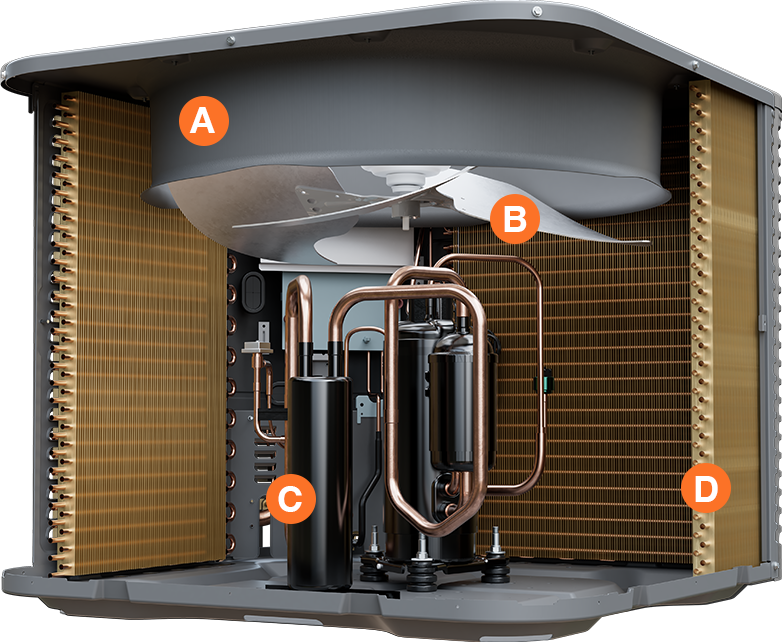

Deep Drawn Venturi
for quiet efficient air movement.
Swept Wing Fan Blades
provide quiet operation.
Large Suction Accumulator
for added compressor protection.
Gold Coat Outdoor Coil
copper tubes with coated fins for added corrosion resistance.
NAA17V36 QuickFacts
29.1" W x 25.0" H x 29.1" D (74.0cm W x 63.5cm H x 74.0cm D)
| Item | NAA17V36 | |
|---|---|---|
| Cooling capacity | 2 - 3 TON | |
| Unit | Dimensions | 29.1" W x 25.0" H x 29.1" D (74.0cm W x 63.5cm H x 74.0cm D) |
| Net weight | 137 lbs (62.1 kg) | |
| Gross weight | 166 lbs (75.3 kg) | |
| Sound rating level (dBA) | 78 dBA | |
| Electrical data | Volts Phase Hz | 230 - 1 60 |
| Minimum circuit ampacity (A) | 20 Amps | |
| Max. overcurrent protection (A) | 30 Amps | |
| Volts (V) min - max | 187 - 253 | |
| Compressor | Compressor type | Inverter driven rotary |
| Hz | 18 - 78 | |
| Rated current (RLA) | 12.8 Amps | |
| LRA | 52 Amps | |
| Fan motor | Power supply | DC |
| RLA (A) | 1.8 | |
| Maximum speed (rpm) | 1,100 RPM | |
| Fan Motor HP | 1/4 | |
| FLA (A) | 1.8 Amps | |
| Coil | Number of rows | 2 |
| Tube outside diameter | 9/32" | |
| Tube pitch x row pitch | 0.83 inch x 0.53 inch (21.1 mm x 13.5 mm) | |
| Net face area | 13.75 sq. ft. | |
| Refrigerant | Refrigerant type | R454B |
| Liquid line OD | 3/8" (9.5 mm) | |
| Vapor line OD | 3/4" (19 mm) | |
| Refrigerant charge (oz) | 111.1 oz (3,149.6 g) | |
| Max line length | 100 ft | |
| Max vertical lift | 50 ft | |
| Operating temperature | Cooling mode | 5 - 124 °F |
| EER2 | Up to 11.5* | |
| Certifications | AHRI | |
*With select AHRI matched indoor equipment.
1 Energy Efficiency Ratio; Certified per AHRI 210/240
2 Seasonal Energy Efficiency Ratio; Certified per AHRI 210/240
3 Heating Seasonal Performance Factor; Certified per AHRI 210/240
Navien reserves the right to change specifications at any time without prior notice.
| Match Setup | Cooling Capacity (BTU/h) | Efficiency | ||||
| Capacity | ODU | IDU | Cased Coil | EER21 | SEER22 | |
| Constant Torque Air Handler | ||||||
| 2 Ton | NAA17V36 | NASS24B2T2A1 | - | 24,000 | 11.5 | 17 |
| 3 Ton | NAA17V36 | NASS36C2T2A1 | - | 33,000 | 10.5 | 15.2 |
| 4 Ton | NAA17V60 | NASS48D2T2A1 | - | 45,000 | 11 | 16.5 |
| 5 Ton | NAA17V60 | NASS59D2T2A1 | - | 50,000 | 10 | 15.5 |
| Variable Speed Air Handler | ||||||
| 2 Ton | NAA17V36 | NASS24B2T2A1 | - | 24,000 | 11.5 | 17.5 |
| 3 Ton | NAA17V36 | NASS36C2T2A1 | - | 33,000 | 10.5 | 17.5 |
| 4 Ton | NAA17V60 | NASS48D2T2A1 | - | 45,000 | 10.5 | 18 |
| 5 Ton | NAA17V60 | NASS59D2T2A1 | - | 50,000 | 10.2 | 17.5 |
| NPF Furnace and Cased Coil | ||||||
| 2 Ton | NAA17V36 | NPF700-060D3BH | NAM24B2TA1 | 24,000 | 11.5 | 18 |
| 2 Ton | NAA17V36 | NPF700-060H3BH | NAM24B2TA1 | 24,000 | 11.5 | 18 |
| 2 Ton | NAA17V36 | NPF700-060U3BH | NAM24B2TA1 | 24,000 | 11.5 | 18 |
| 2 Ton | NAA17V36 | NPF700-080D3BH | NAM24B2TA1 | 24,000 | 11.5 | 18 |
| 2 Ton | NAA17V36 | NPF700-080H3BH | NAM24B2TA1 | 24,000 | 11.5 | 18 |
| 2 Ton | NAA17V36 | NPF700-080U3BH | NAM24B2TA1 | 24,000 | 11.5 | 18 |
| 3 Ton | NAA17V36 | NPF700-060D3BH | NAM36B2TA1 | 33,000 | 10 | 17.5 |
| 3 Ton | NAA17V36 | NPF700-060D3BH | NAM36C2TA1 | 33,000 | 10 | 17.5 |
| 3 Ton | NAA17V36 | NPF700-060H3BH | NAM36B2TA1 | 33,000 | 10 | 17.5 |
| 3 Ton | NAA17V36 | NPF700-060H3BH | NAM36C2TA1 | 33,000 | 10 | 17.3 |
| 3 Ton | NAA17V36 | NPF700-060U3BH | NAM36B2TA1 | 33,000 | 10 | 17.5 |
| 3 Ton | NAA17V36 | NPF700-060U3BH | NAM36C2TA1 | 33,000 | 10 | 17.3 |
| 3 Ton | NAA17V36 | NPF700-080D3BH | NAM36B2TA1 | 33,000 | 10 | 17.5 |
| 3 Ton | NAA17V36 | NPF700-080D3BH | NAM36C2TA1 | 33,000 | 10 | 17.5 |
| 3 Ton | NAA17V36 | NPF700-080H3BH | NAM36B2TA1 | 33,000 | 10 | 17.5 |
| 3 Ton | NAA17V36 | NPF700-080H3BH | NAM36C2TA1 | 33,000 | 10 | 17.3 |
| 3 Ton | NAA17V36 | NPF700-080U3BH | NAM36B2TA1 | 33,000 | 10 | 17.5 |
| 3 Ton | NAA17V36 | NPF700-080U3BH | NAM36C2TA1 | 33,000 | 10 | 17.3 |
| 3 Ton | NAA17V36 | NPF700-100D5CH | NAM36C2TA1 | 33,000 | 10 | 17.5 |
| 3 Ton | NAA17V36 | NPF700-100H5CH | NAM36C2TA1 | 33,000 | 10 | 16.8 |
| 3 Ton | NAA17V36 | NPF700-100U5CH | NAM36C2TA1 | 33,000 | 10 | 17.3 |
| 4 Ton | NAA17V60 | NPF700-100D5CH | NAM48C2TA1 | 45,000 | 10 | 17.3 |
| 4 Ton | NAA17V60 | NPF700-100H5CH | NAM48C2TA1 | 45,000 | 10 | 17.5 |
| 4 Ton | NAA17V60 | NPF700-100U5CH | NAM48C2TA1 | 45,000 | 10 | 17.5 |
| 4 Ton | NAA17V60 | NPF700-100U5CH | NAM48C2TA1 | 45,000 | 10 | 17.5 |
| 5 Ton | NAA17V60 | NPF700-100D5CH | NAM59C2TA1 | 50,000 | 9.8 | 16.5 |
| 5 Ton | NAA17V60 | NPF700-100D5CH | NAM59D2TA1 | 50,000 | 9.8 | 16.5 |
| 5 Ton | NAA17V60 | NPF700-100H5CH | NAM59C2TA1 | 50,000 | 9.8 | 16.5 |
| 5 Ton | NAA17V60 | NPF700-100U5CH | NAM59C2TA1 | 50,000 | 9.8 | 16.5 |
| 5 Ton | NAA17V60 | NPF700-100H5CH | NAM59D2TA1 | 50,000 | 9.8 | 16.5 |
| 5 Ton | NAA17V60 | NPF700-100U5CH | NAM59D2TA1 | 50,000 | 9.8 | 16.5 |
Performance data subject to change. Check www.ahridirectory.org for latest information.
1Energy Efficiency Ratio; Certified per AHRI 210/240
2Seasonal Energy Efficiency Ratio; Certified per AHRI 210/240
| Capacity | Mode | Sound Power Level (dBA) | Full Octave Sound Power Level (dBA) | |||||||||
| Lw (AHRI 270 125~8000Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 | 8000 | |||||
| 3 Ton | Low | 61 | 48 | 50.9 | 50.7 | 44.1 | 35.8 | 38.1 | 35.6 | |||
| High | 81 | 64 | 70.3 | 70.4 | 67.7 | 62.1 | 58.7 | 52.5 | ||||
| 5 Ton | Low | 61 | 48.5 | 50.9 | 51.9 | 45.7 | 38.4 | 39.1 | 35.9 | |||
| High | 82 | 68.6 | 67.4 | 71 | 66.2 | 61.9 | 56.3 | 49.6 | ||||
