NPF
NPF Series> Dimensions
Navien-app-icon-ci

Download the new Navien mobile app!

Apple iOSGoogle Android

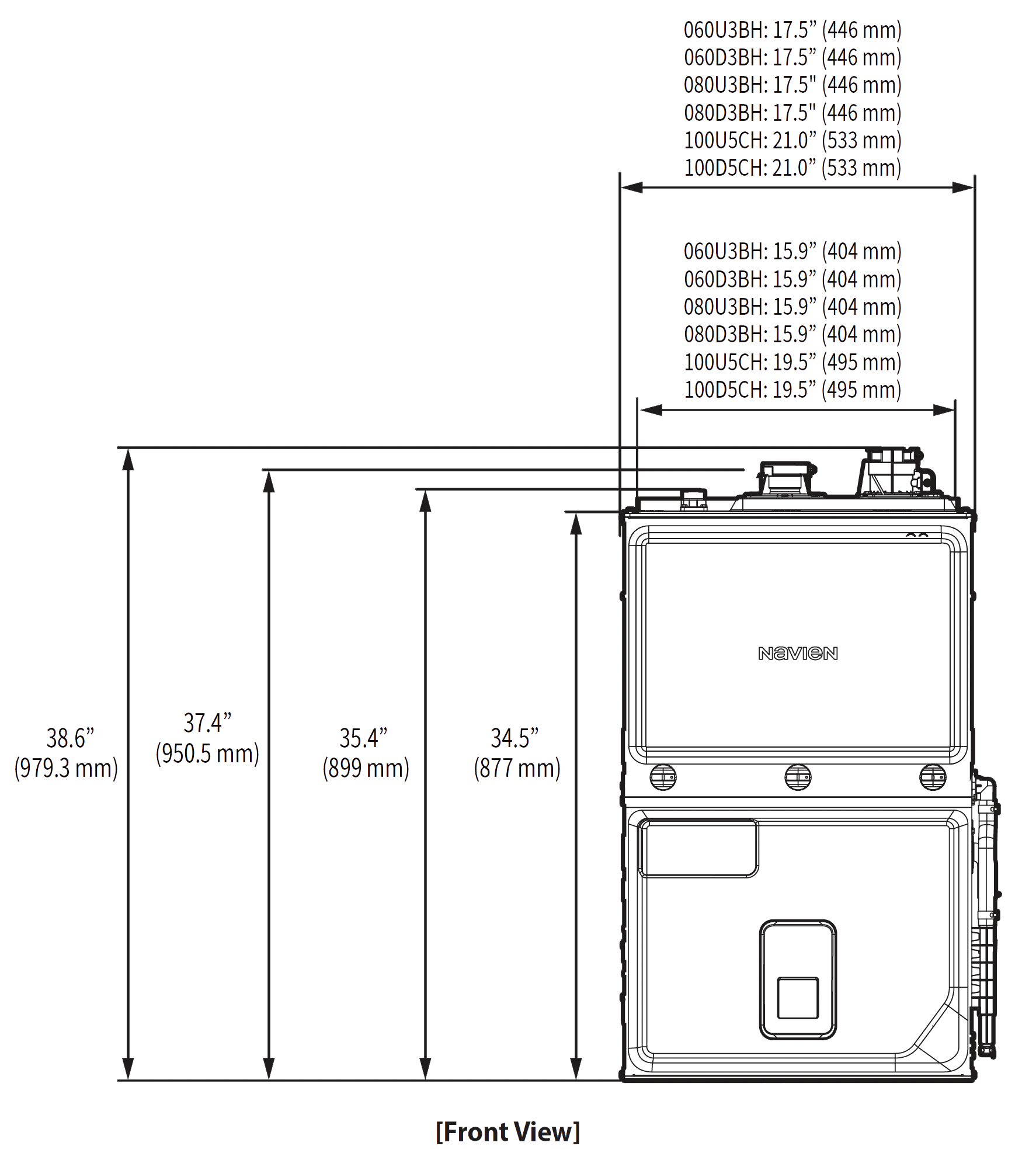

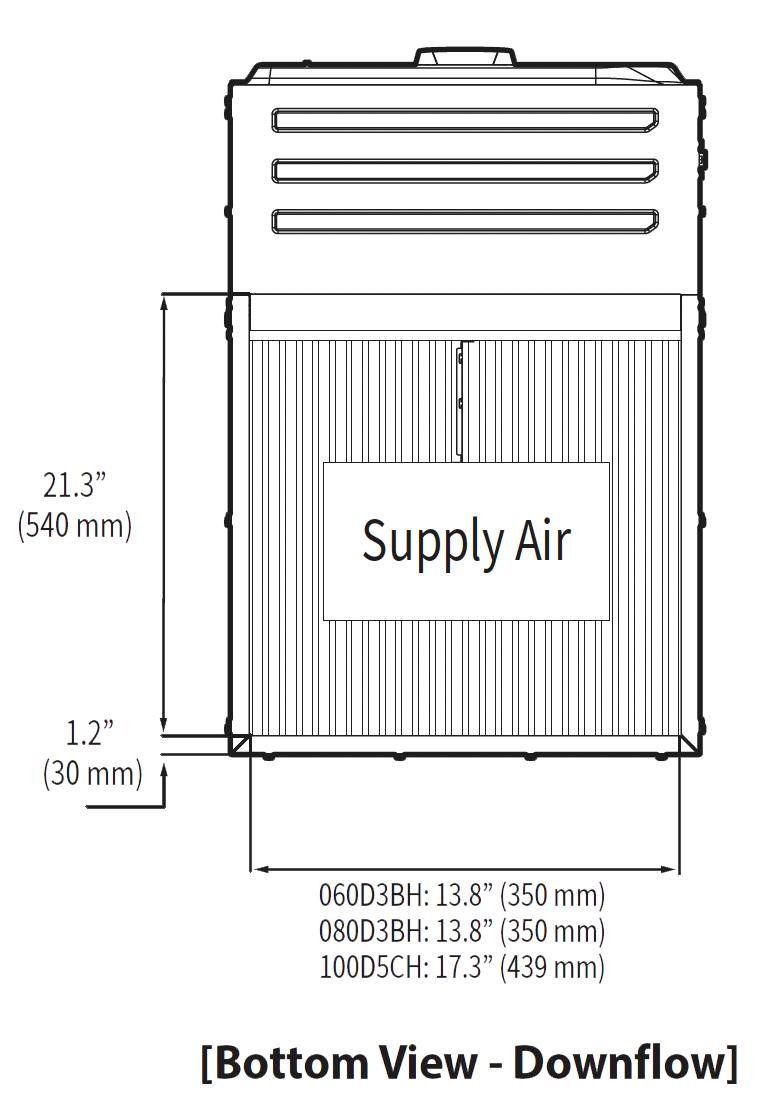

NPF Dimensions

17.5" W x 34.5" H x 31.0" D
(44.5cm W x 87.6cm H x 78.7cm D)

Npf-60-u-front Npf-60-u-right Npf-60-u-left
Npf-60-u-top Npf-60-u-bottom Npf-60-u-bullets

21.0" W x 34.5" H x 31.0" D
(53.3cm W x 87.6cm H x 78.7cm D)

Npf-60-u-front Npf-60-u-right Npf-60-u-left
Npf-60-u-top Npf-60-u-bottom Npf-60-u-bullets

34.5" W x 17.5" H x 31.0" D
(87.6cm W x 44.5cm H x 78.7cm D)

Npf-60-h-front Npf-60-h-right Npf-60-h-left
Npf-60-h-top Npf-60-h-bottom Npf-60-u-bullets

34.5" W x 21.0" H x 31.0" D
(87.6cm W x 53.3cm H x 78.7cm D)

Npf-100-h-front Npf-100-h-right Npf-100-h-left
Npf-100-h-top Npf-100-h-bottom Npf-60-u-bullets
